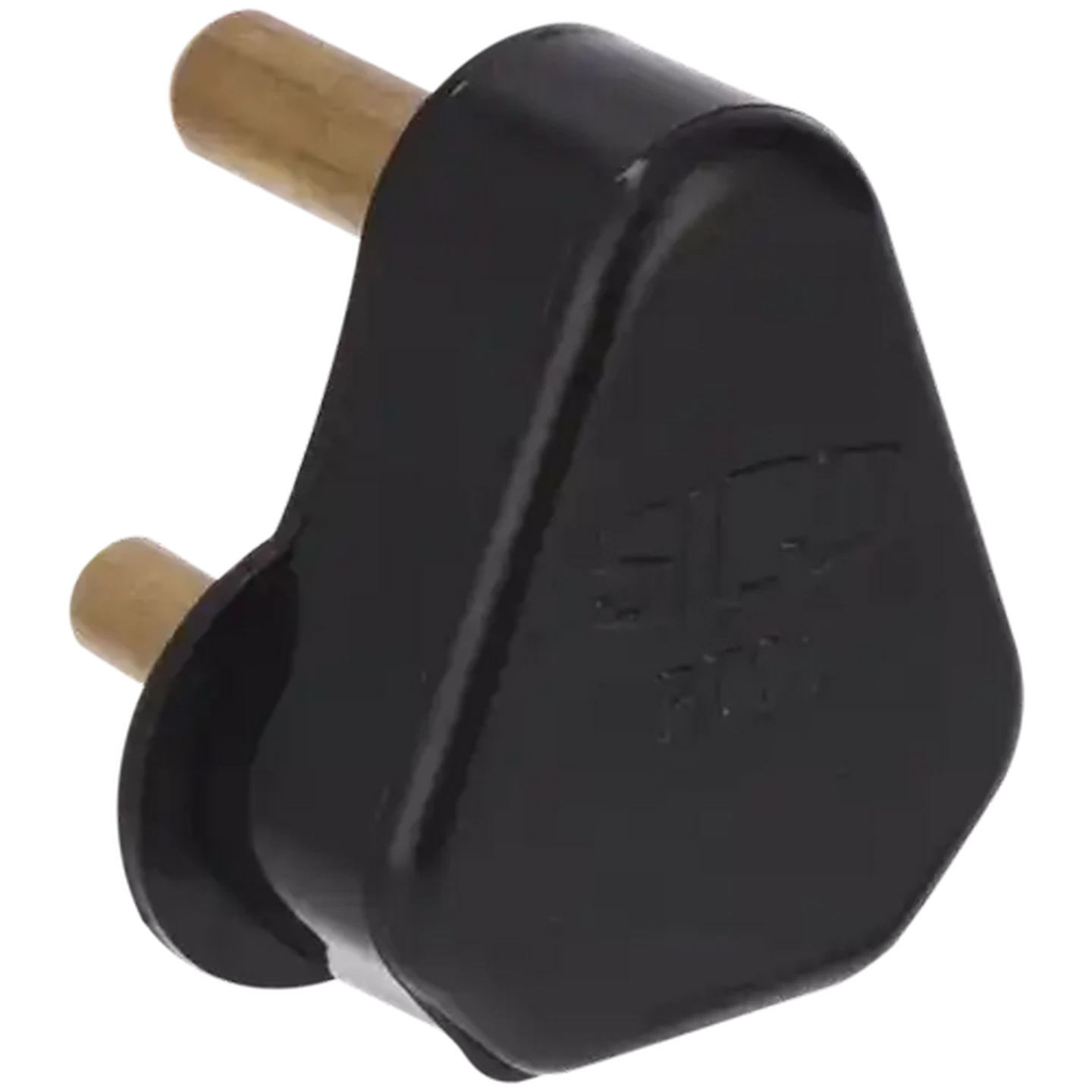

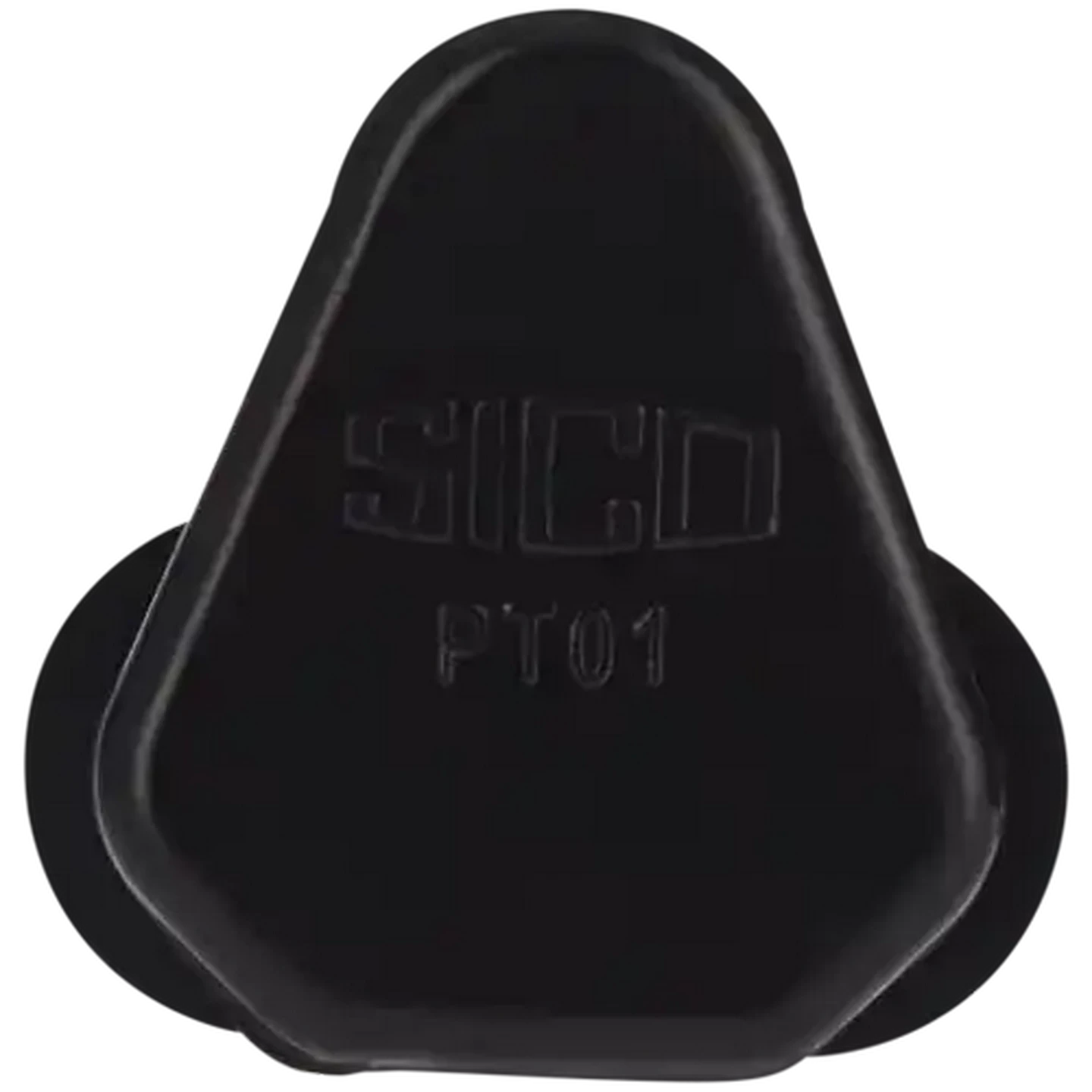

SCE Type-M Plug Head Black 16A

The SCE Type M Plug head Black 16A is a standard South African three-pin electrical connector designed for heavy-duty power cables. This 250V rewirable plug top features a grounded Type M configuration with solid brass pins and a durable, flame-retardant black housing, ensuring a secure and reliable interface for high-wattage domestic and industrial equipment.

Product Specifications

• • Plug Type: Standard South African 3-pin (Type M) earthed configuration.
• • Current Rating: 16 Amps maximum, suitable for high-draw household and workshop appliances.
• • Voltage Rating: 250V AC, fully compatible with the South African national power grid.
• • Terminal Type: Internal screw-clamp pillars for secure and stable wire fastening.
• • Material: High-impact, heat-resistant black thermoplastic casing.
• • Pins: Solid brass for optimal electrical conductivity and long-term corrosion resistance.
• • Cable Entry: Equipped with an internal cord grip to prevent wire strain and accidental pull-outs.

Ideal Use

• • Industrial Repairs: Replace damaged or burnt plug head units on workshop drills, grinders, and heavy-duty machinery.
• • Custom Extensions: ideal for DIY enthusiasts constructing custom-length extension leads using 3-core 1.5mm cabtyre cable.
• • Kitchen Appliances: Provides a robust connection for high-heat appliances such as air fryers, kettles, and microwave ovens.
• • Stage and Studio: The sleek black finish is preferred for entertainment environments where cables must remain discrete.

Safety Precautions

• • Wiring Standards: Ensure the Brown (Live), Blue (Neutral), and Green/Yellow (Earth) wires are connected to the clearly marked L, N, and E terminals.
• • Tighten Connections: All terminal screws must be fastened firmly to prevent loose wiring, which can cause electrical arcing or fire.
• • Insulation Integrity: Only strip enough insulation to reach the terminals; ensure the outer cable jacket is securely clamped by the internal cord grip.
• • Professional Guidance: If you are unsure of the correct wiring procedure, consult a qualified electrician to ensure compliance with SANS safety regulations.

Frequently Asked Questions

• • Is this the standard large 3-pin plug? Yes, this is the 16A Type M plug top, the most common grounded plug used in South African wall sockets.
• • Can I use this for a 2-core cable? While possible, it is recommended to use 3-core earthed cable for any appliance with a metal chassis to ensure user safety.
• • Does this plug include an internal fuse? No, South African 16A plugs are not internally fused; safety protection is managed by your home's distribution board circuit breakers.
• • Why choose a black plug? Black plug head units are more resilient to showing dirt, oil, and scuff marks, making them ideal for garages, workshops, or outdoor-rated (but dry) equipment.
